Home > 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
1/1
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
Share:

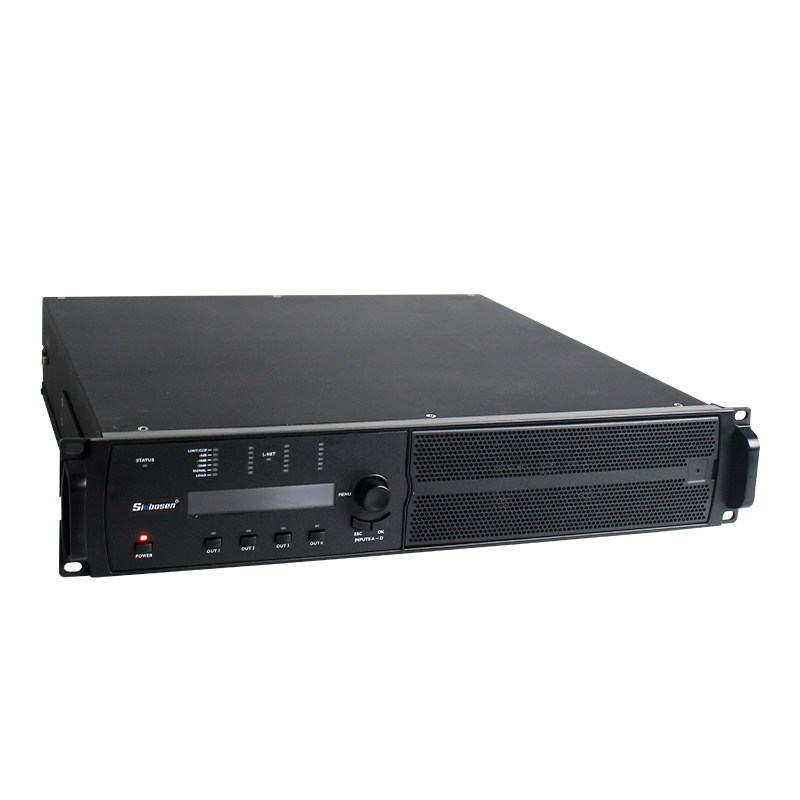

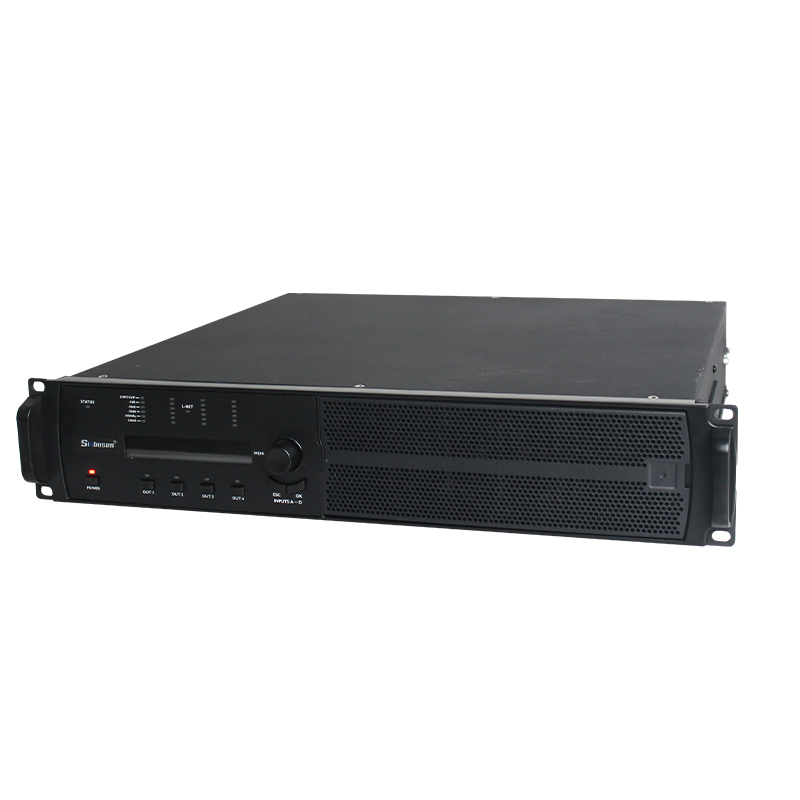

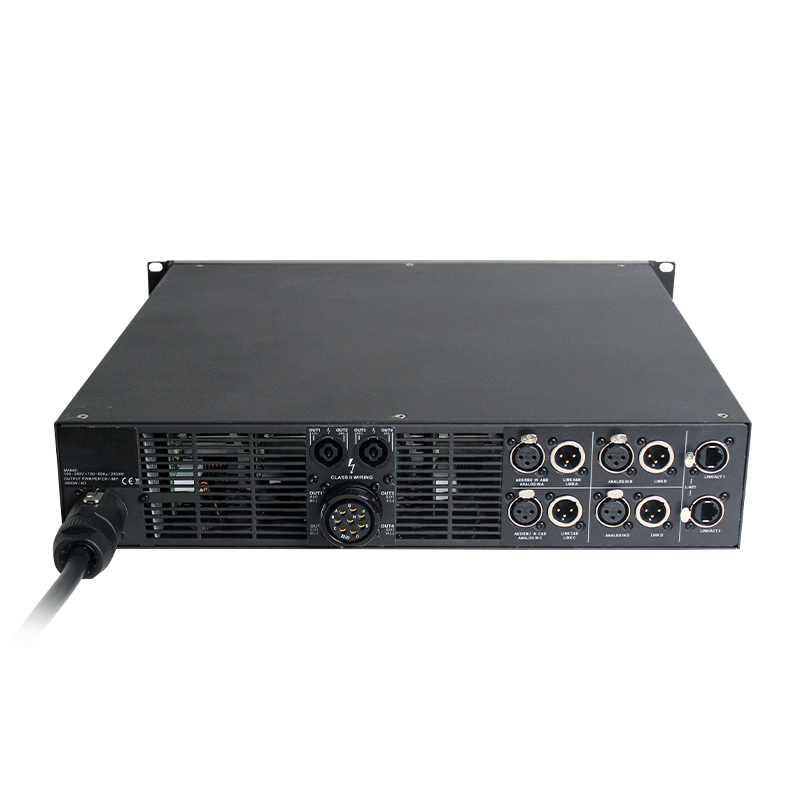

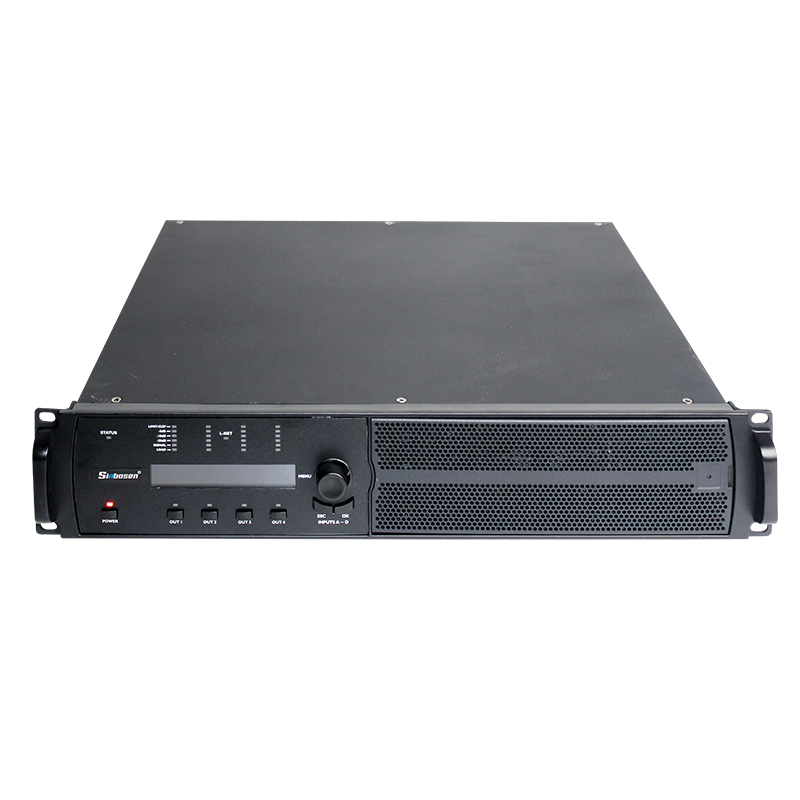

4 Channel 1800W Built-in Presets High End Professional Amplifier

SKU:
0.0 (0)
1 Sold
$1,588.00 $0.00
4*1800W 8ohms
4*3000W 4ohms
DFM DSP control from Germany
Built-in Presets of  hot model speakers
Enthernet Control
100V-240V wide voltage power supply
High efficient cooling system
INQUIRY
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    Germany
    Please select the information you wantX
Quantity:
Add to Favorites (2)
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
1/1
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • 4 Channel 1800W Built-in Presets High End Professional Amplifier
  • Description
Professional Power Amplifier Specifications
Model
L-12X
Output Power  1KHz,<0.05%THD:
8Ω Stereo Power:
4x1800W
4Ω Stereo Power:
4x3000W
2Ω Stereo Power:
4x3200W
THD (20Hz-20kHz for 1W):
THD (1kHz and 1 dB below clipping):
<0.1%
<0.05%
DSP Processor
DFM
Signal Noise Ration:
>120dB
Frequency Response(+/-0.1dB):
10Hz-34kHz
Damping coeficient:
>500
Impedance(balanced/unbalanced):
20KΩ/10KΩ
Gain (optional):
35dB
Output socket:
Speakon Connectors(NEUTRIK)
Input socket:
Combo XLR type,3pin(NEUTRIK)
Link socket:
XLR type,3pin male(NEUTRIK)
Protection:
Short circuit, open circuit,thermal,
overload, DC, super audio protection
Power Requirement:
100-240V~50Hz
Size(W x H x D):
483x425x88mm
Weight(net):
18Kg

Product Description
L-12X amplifier is based on a modern, high performance D class topology.This topology provides high efficiency, low heat generation and large output power At the same time, the high switching frequency of the output stage (450 kHz) provides sound quality comparable with the best analog amplifiers.

Feature
2U metal (steel) case. It is designed to be installed in a standard 19-inch rack.
Forced cooling system with a smooth adjustable cooling rate. Features five powerful fans and backward air flow direction.
One removable filter is located on the front panel under protective cover.Covers can be removed and installed without the use of any tools
Bulit in Output Overload and Short-Circuit Protection,DC Output Protection, Thermal Protection
Soft Start system to reduce the power-on inrush current

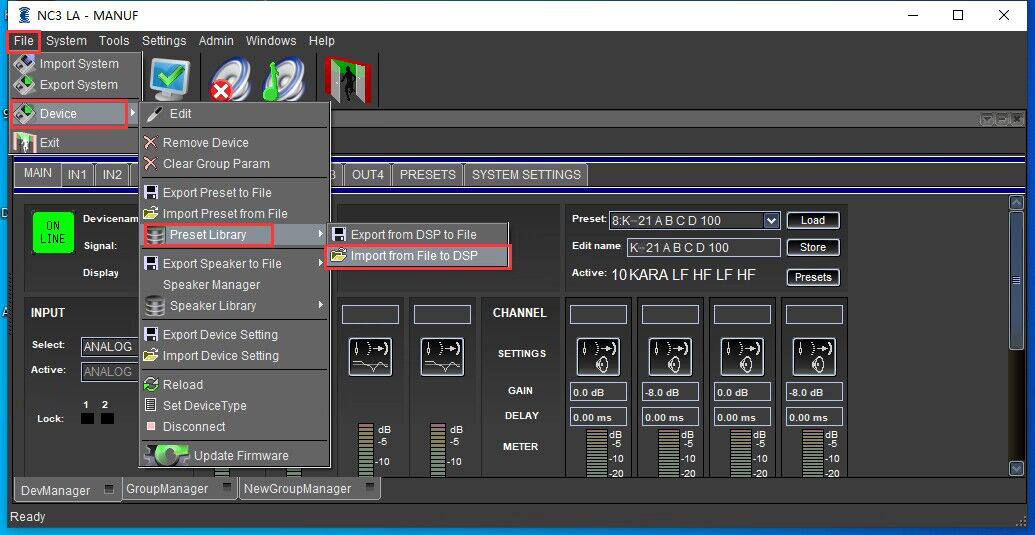

DSP Software
The amplifier is equipped with a flexible and powerful high-end DSP from DFM audio, Germany.The close integration of processing and amplification allows the DSP to monitor and better respond to amplifier behavior, making dynamics processing far more accurate and effective than that typically achieved with separate components. The onboard DSP offers four channels of crossover filters, parametric EQ, FIR filter and alignment delay - everything needed to optimize a loudspeaker system.

For DSP processing, the analog signal is converted to digital using four 24-bit A/D converters, operating at 96 kHz. The dynamic range of A/D and D/A converters is 120 dB.

Presets of  hot model speakers
