| Product Parameters |
||
| Model | LA8 | LA12X |
| 8 ohm Stereo Power(RMS) | 1450W *4CH | 2200W *4CH |
| 4 ohm Stereo Power (RMS) | 2200w *4CH | 4000W *4CH |
| Frequenty Response | 20Hz-20kHz ±0.5dB | |
| THD+N(Rated power,4Ω/KHz)% | 0.10% | |
| Signal Noise Ration(dB) | 110dB | |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced | |
| Output Connectors | Speak on Connectors | |
| Power Requirement | 110-120V / 50-60Hz or 200-240V / 50-60H | |
|

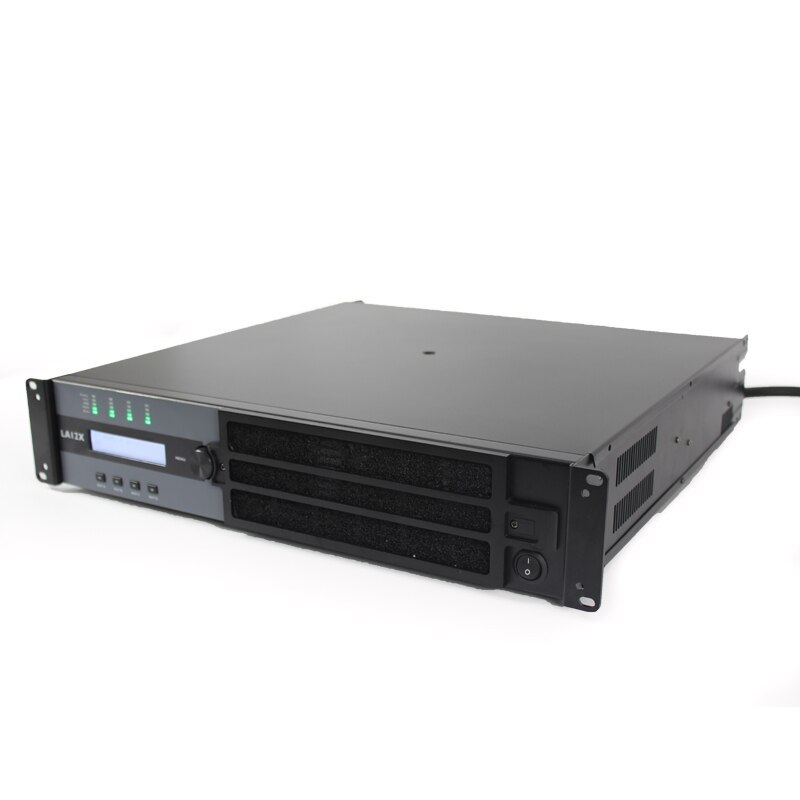

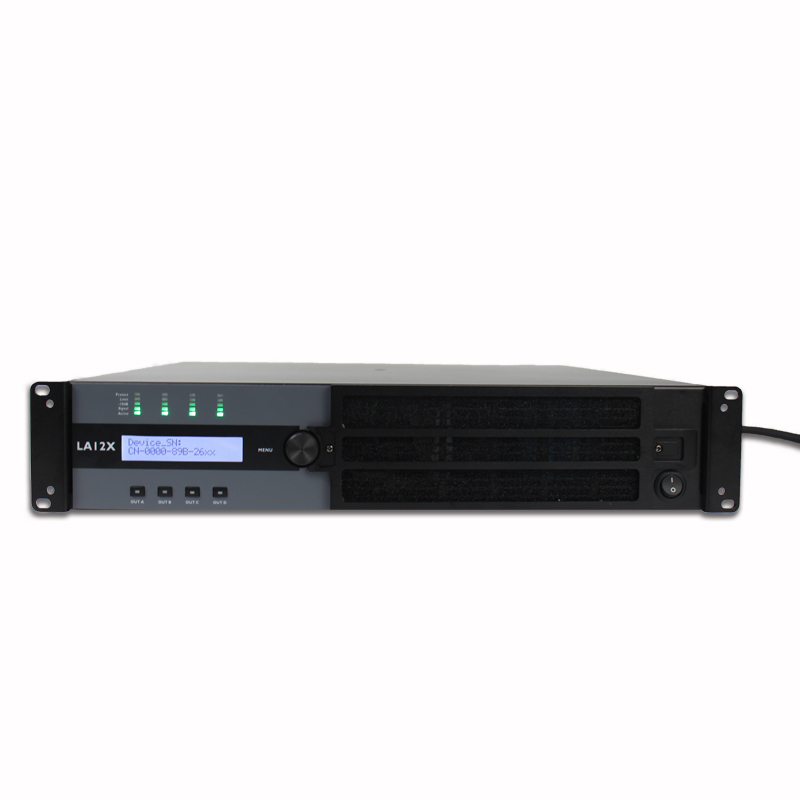

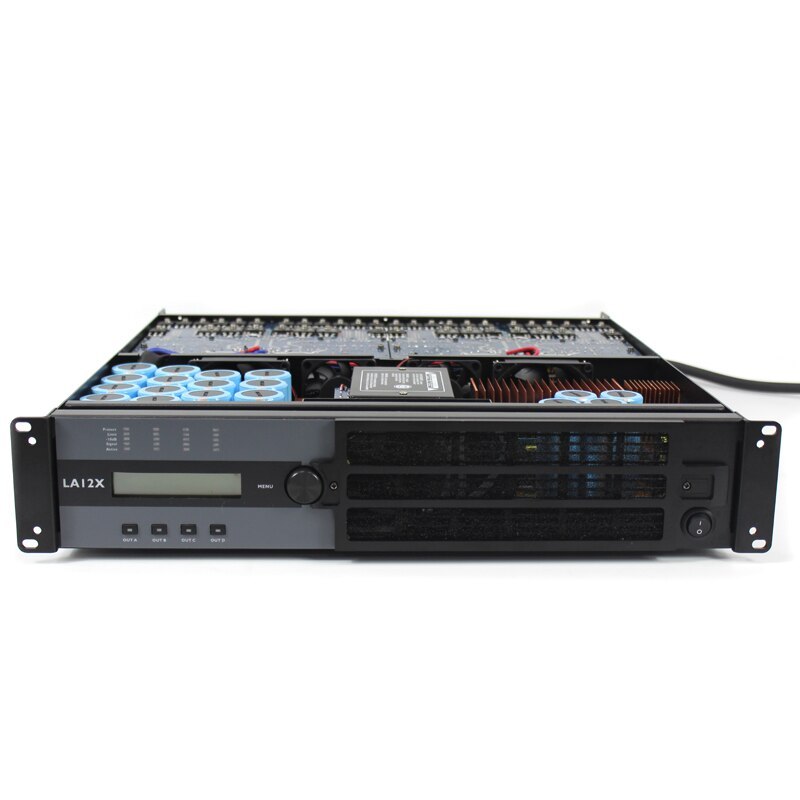

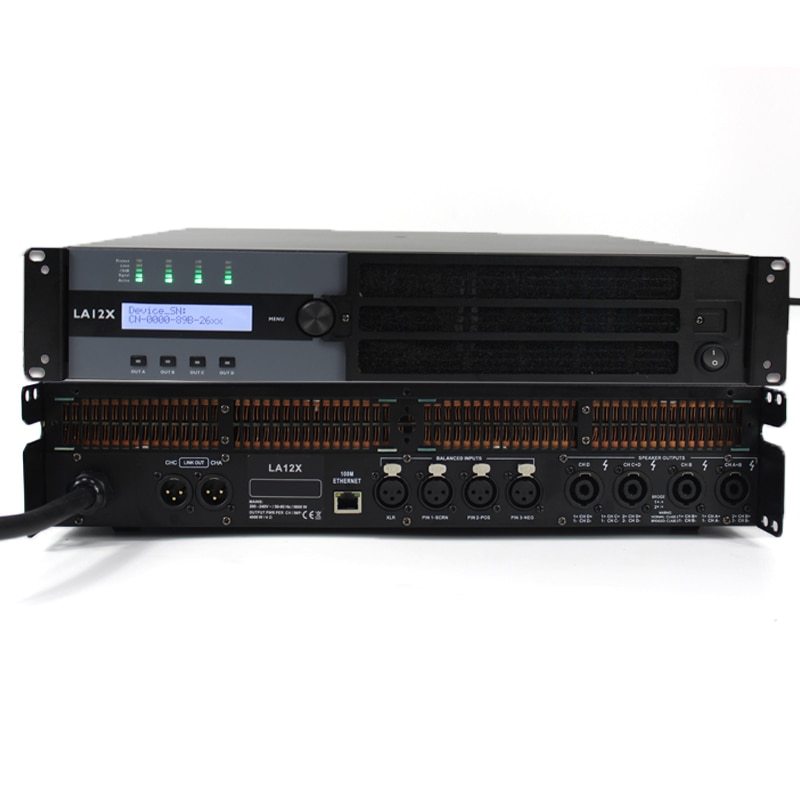

LA12X POWER AMPLIFIER FEATURE

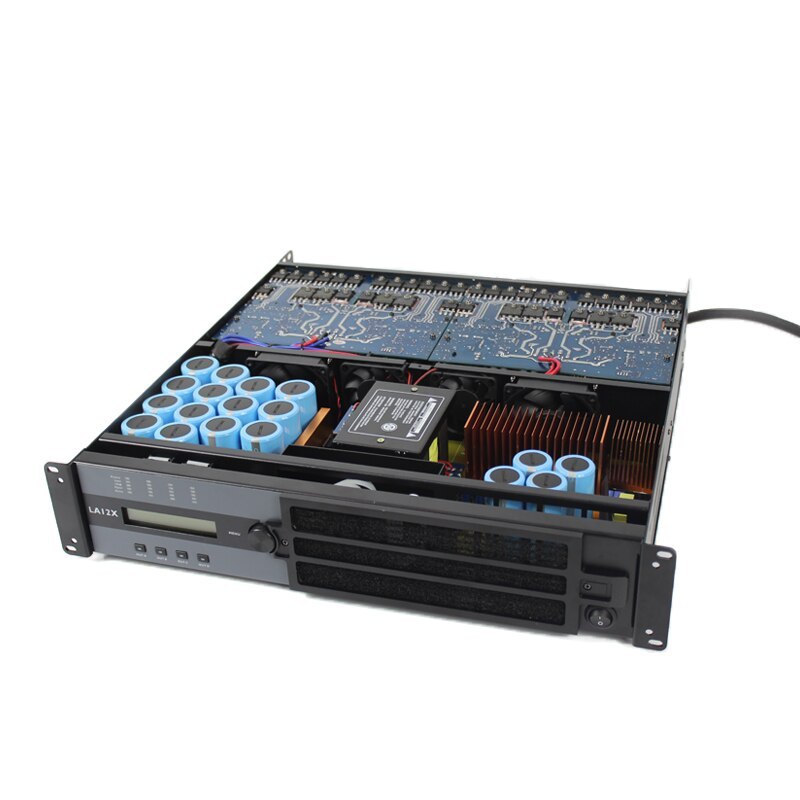

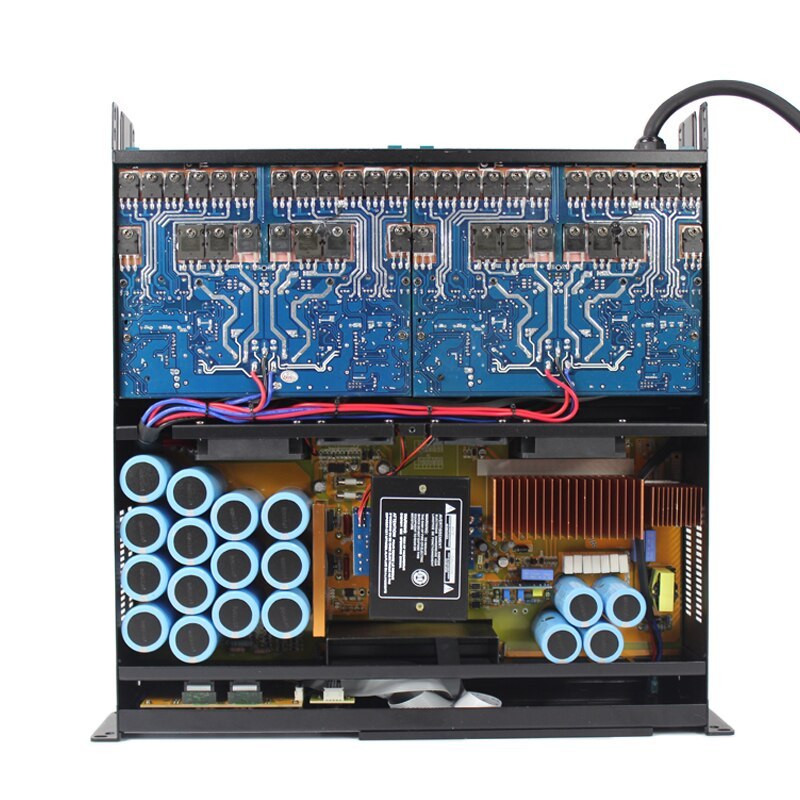

●4 Channel Class TD Switching power amplifier with DSP ●4 x 2200 Watts into 8 Ohms, 4 x 4000 Watts into 4 Ohms ●Create SUPER sound quality ●Control the sound effect DSP software on the Computer ●Or control the sound effect by Computer ●Simple DSP software,no need to install, easy to operate it ●Bridge-mode operation for Touring Applications ●Comprehensive protection scheme ●Use Original Siemens high quality capacitor 14pcs 3600uf 200V +4pcs 2200uf 200V ●Use Original ONSEMI transistor ●Original Neutrik XLR*/Speakon connectors ●High efficient cooling. Extended heatsink board to 95 mm ●Temperature protection;Over current protection;Short circuit protection built-in |

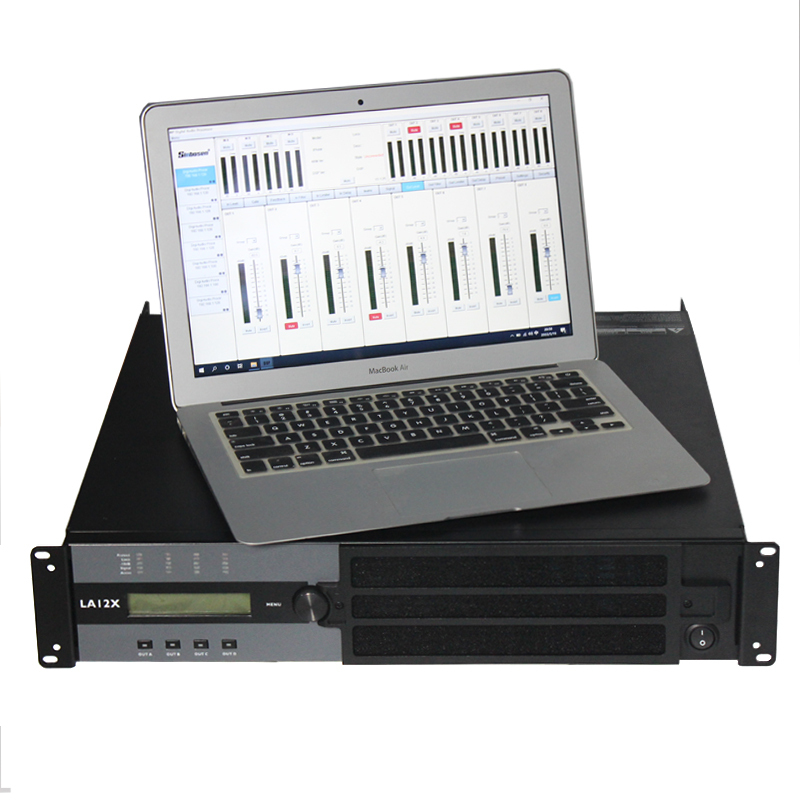

| DSP CONTROL: Connect the computer for DSP software operation, which is equivalent to the work of a processor. DSP Function: In Level, Gate, Feedback, In Filter, In Limiter, In Delay, Matrix, Signal, Out Level, Out Filter, Out Limiter, Preset, Settings, Security etc. This DSP has below features: ● It suit for Win 7 Win10 and MAC system; ● ADSP-21488 400Mhz floating-point DSP ● Dynamic range 110dBu ● Input 16 PEQs and Output 16 PEQs ● Time-Delay CH1-4 : 218ms, CH5-8 : 168ms ● Two 100M Ethernet interfaces ● PC Software Automatic Discovery Processor ● 32 system presets ● Fast copy of channel parameters ● Upgrade DSP and ARM firmware through ethernet ● Any Module Function Parameter is Hidden and Read - Only ● Customize your Brand on DSP Software easily. |
