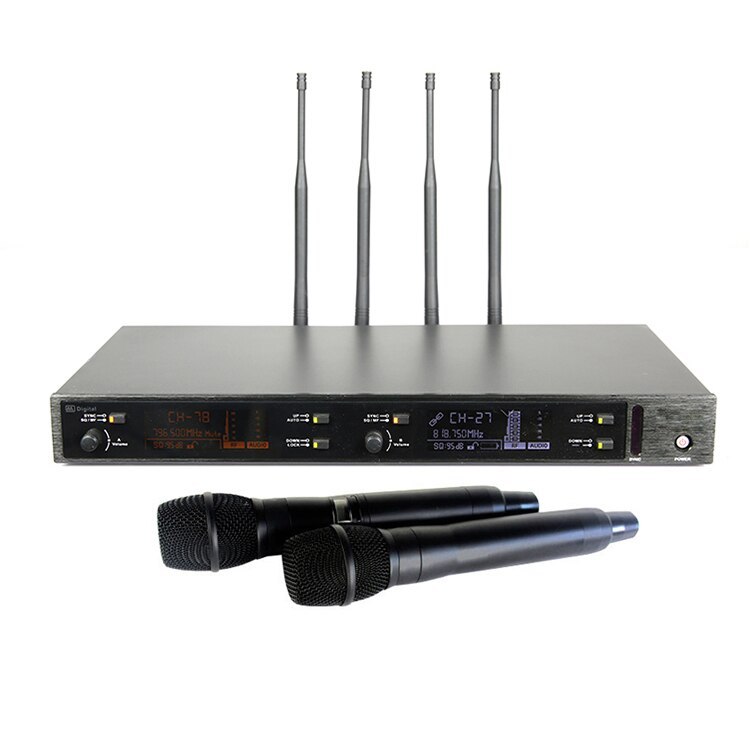

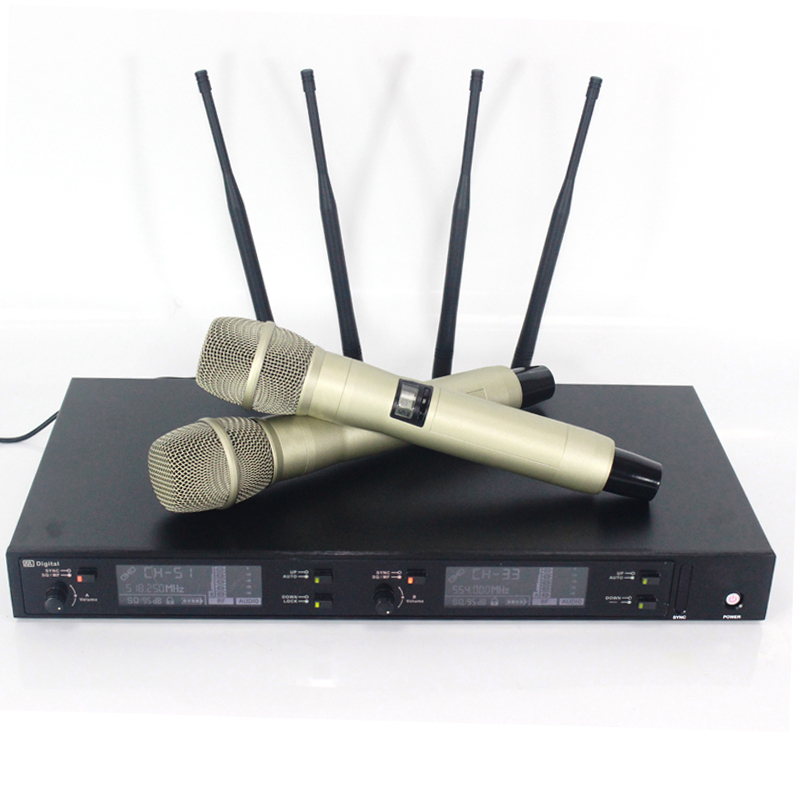

| Receiver: | |
|---|---|
| Chassis Specifications | Standard 1U chassis |
| Number of channels | dual channel |
| Carrier frequency band | UHF615-655MHz /780-820MHz |
| Modulation method | FM |
| Oscillation method | PLL phase locked frequency synthesizer |
| Frequency stability | ± 0.0005% |
| Sensitivity | S / N> 60dB when the offset is equal to 25KHz and input 6dBμV |
| Maximum deviation | ± 45kHz |
| Bandwidth | 40MHz |
| Integrated S / N ratio | > 108dB |
| Integrated T.H.D. | <0.4%@1KHz |
| Integrated frequency response | 65Hz ~ 18kHz ± 3dB |
| Balanced | -20dBV / 100Ω |
| Unbalanced | -4dBV / 5KΩ |

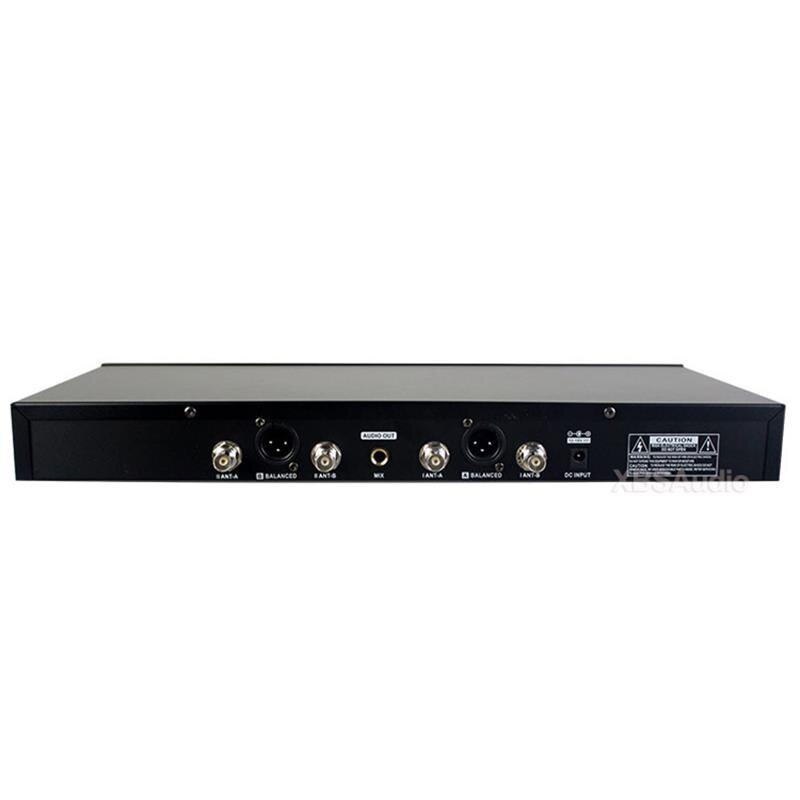

| Output socket | XLR balanced and 6.3φ unbalanced socket |
| Working effective distance | 400 meters in general (open area |
| Power supply | 100-240VAC50 / 60Hz, 10W |
| Net Weight | 4.3KG |
| Size (mm) | 421 (L) × 43 (H) × 206 (W) |
| Transmitter:(Can be condenser microphone) | |
|---|---|
| Carrier frequency band | UHF615-655MHz /780-820MHz |
| Oscillator mode | PLL phase locked frequency synthesizer |
| Harmonic radiation | <- 63dBm |
| Bandwidth | 80MHz |
| Maximum deviation | ± 45KHz |
| Power output | 30mW |
| Frequency response | 50Hz ~ 18KHz |
| The maximum input sound pressure | 130dBSPL |
| Sound head | Dynamic |
| Battery | AA × 2 |
| Current consumption | <110mA |
| Size (mm) | 265mm long × 56mm diameter |
