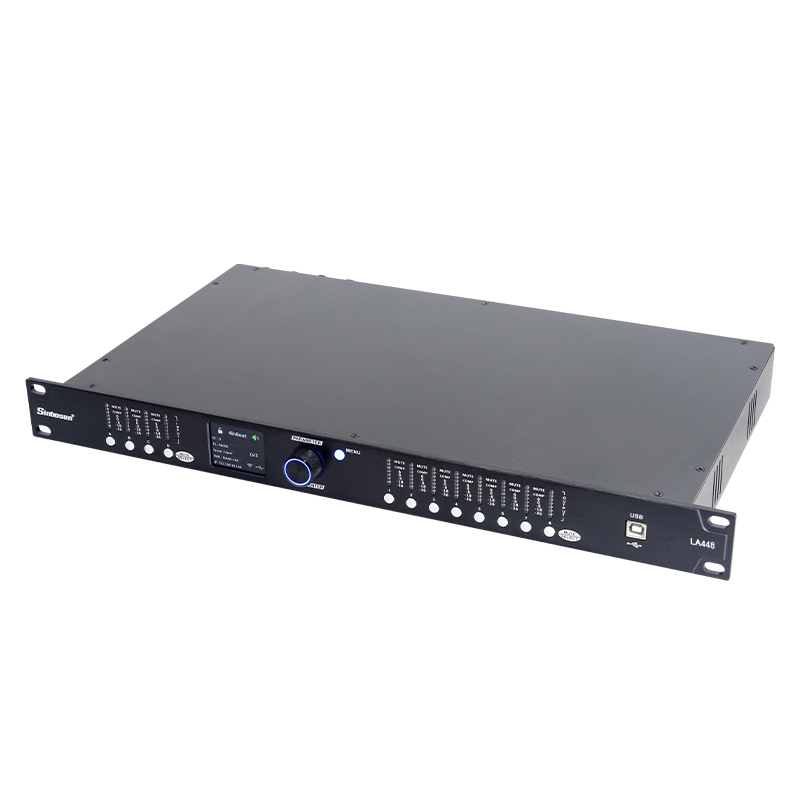

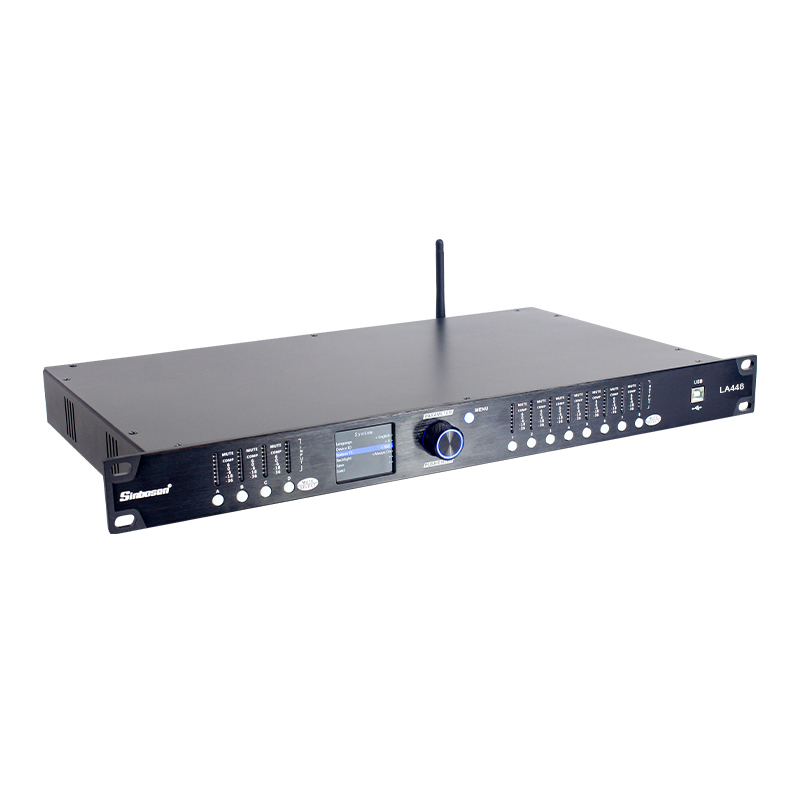

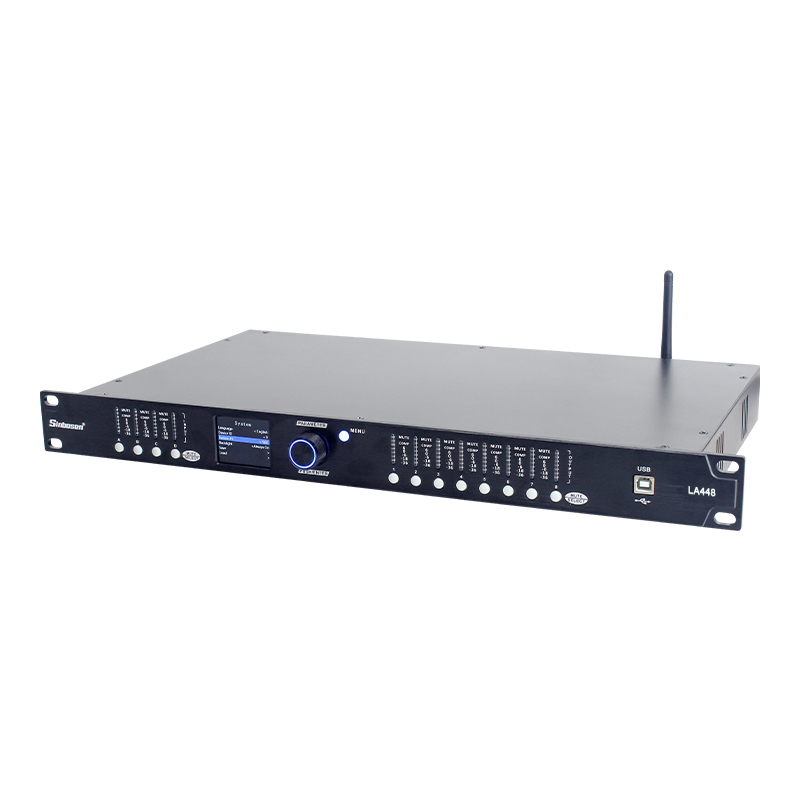

LA448 adopts latest fourth generation processor, with many conventional audio algorithms such as routing / gain / delay / compression / amplitude limiting / mute / equalization / high-low pass filter / all pass filter and phase.
In addition, the following personalized functions are added, and each function is completely closed or opened independently.
FEATURE :
► 96KHz / 192Khz sampling rate switching, with both functions, brings more application scenarios.
► Dynamic equalizer is automatically optimized for large signal or small signal.
► FIR filter can perfectly correct the phase distortion caused by system parameter adjustment.
► The delay of each channel is up to 1200ms, and the precision is optimized to 0.01ms with the fine adjustment of sound field or phase.

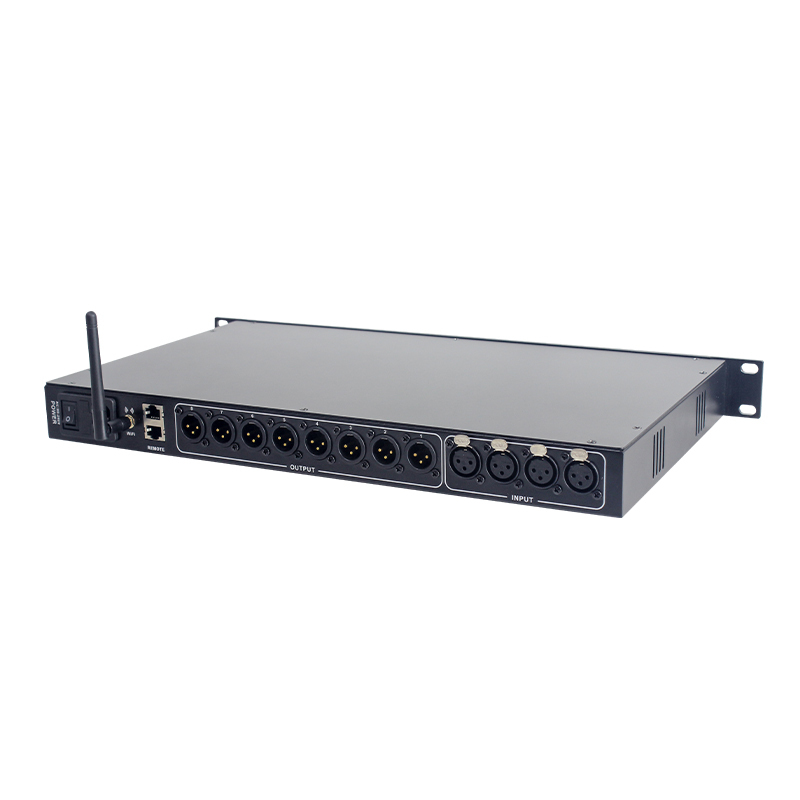

► 4-way input and 8-way output, complete routing assignment, can be set to multiple working modes.

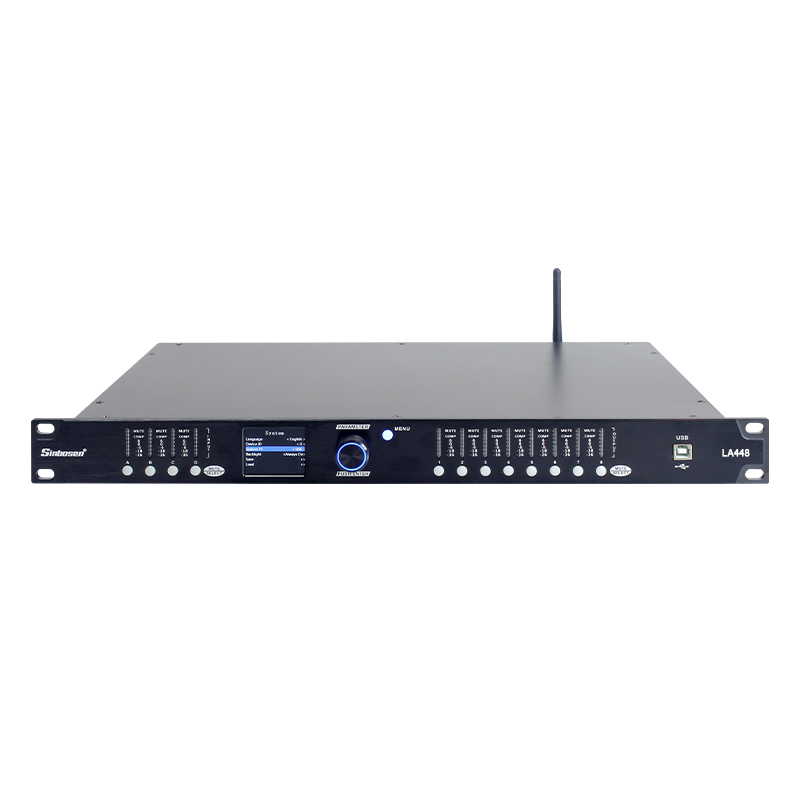

► Color LCD display, real-time dynamic level display, Chinese and English interface optional.
► One key mute and global total volume control.
► Equipped with WiFi / RS485 central control and drive free USB control interface, which can be adjusted by the control software at the PC.
Technical Parameter
|
Specifications
|
Parameter
|
|
Frequency response
|
±0.2dB10Hz-25kHz
|
|
THD+N
|
<0.005%@10Hz-25KHz
|
|
SNR
|
>118dB at 1% THD+N 10Hz-25KHz
|
|
Maximum input level
|
+20dBu /7.775Vrms
|
|
Maximum output level
|
+20dBu /7.775Vrms
|
|
Gain range
|
- 80dB to + 12dB per channel
|
|
Input impedance
|
>10K ohm. XLR input
|
|
Output impedance
|
< 60 ohms. XLR output
|
|
test signal
|
Independent sine wave / white noise / pink noise for each channel is optional
|
|
Input equalization
|
12 sections (parameter / high / low rack / all pass) + 3 sections dynamic equalization
|
|
Extender
|
Threshold / ratio / start time / recovery time adjustable
|
|
High pass type
|
Ningke / Bessel / Bart 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48
|
|
Low pass type
|
Ningke / Bessel / Bart 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48
|
|
Adjustable delay
|
1200ms / accuracy 0.01ms for each channel
|
|
Group delay
|
2.8ms@96KHz / 1.2ms@192KHZ
|
|
Output equalization
|
16 segments per channel, supporting parameters / high / low frame / all pass filter
|
|
Output FIR
|
Low pass / high pass / band pass direct setting, coefficient support import / export
|
|
DRC dynamic control
|
Clipping (peak or RMS value) + compression
|
|
Volume / mute control
|
Direct panel knob, total volume and mute control
|
|
Phase control
|
Input / output: 0 / 180 degree flip per channel
|
|
Online control
|
Three online modes of USB / WiFi / RS485 central control
|
|
Level meter
|
Dynamic indication of display level
|
|
Power range
|
85V-260V 50Hz-60Hz
|
|
weight
|
Net weight: 3.6kg, gross weight: 5.2kg
|
|
Overall dimensions
|
(46 x 482 x 250mm), excluding interface
|
Software Interface①The machine is equipped with PC side control software, which can control the machine remotely through WiFi / RS485 / USB port, and the PC side operation is more intuitive and fast.
②The following figure shows the signal flow and algorithm composition of the machine.
